Bottle air rinsers prepare empty containers for filling by addressing an agreed contamination problem. Specify the bottle, debris to remove and required cleanliness, then assess air delivery, bottle handling and debris removal together. Air rinsing should not be treated as a sterilisation claim.
Speak directly with Lancing about bottle air-rinsing equipment.

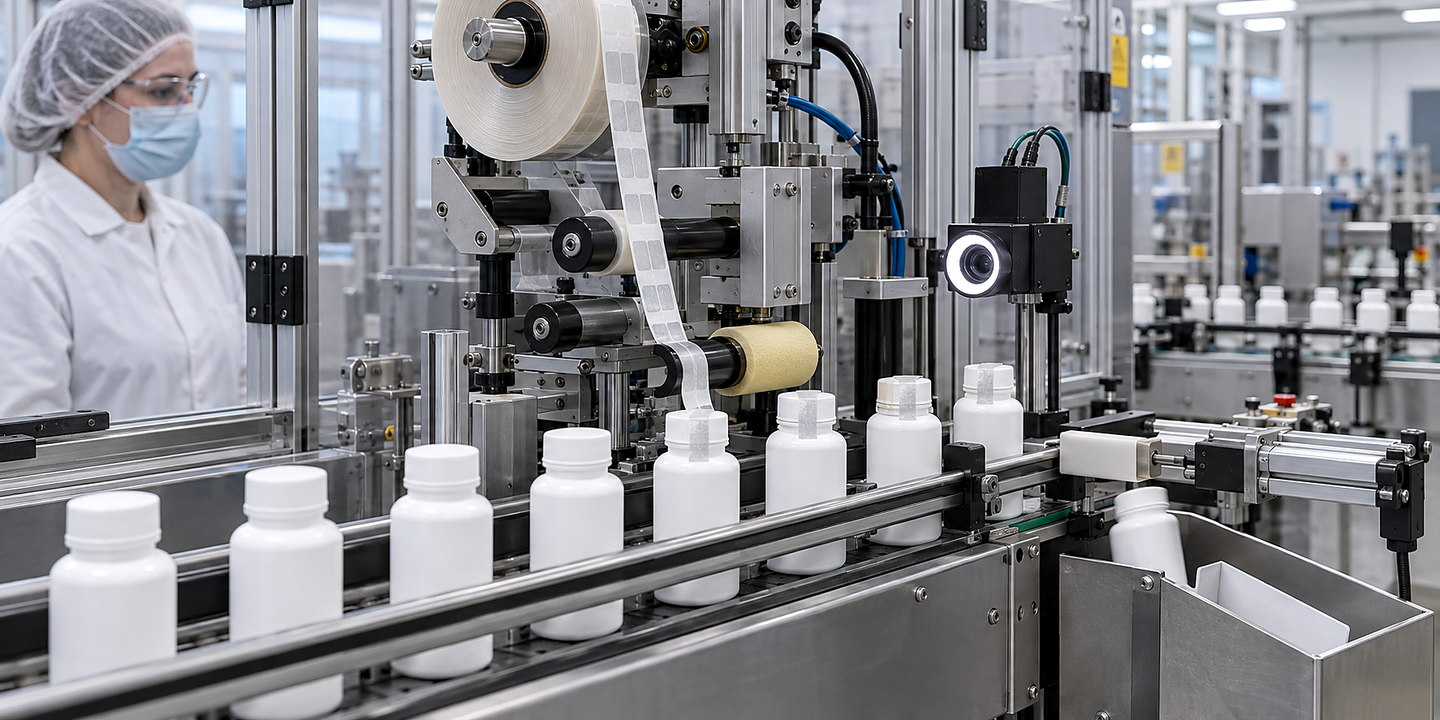

Illustrative bottle-labelling scene.
Describe the contamination to remove, the bottle material and the cleanliness required before filling. An air-rinsing trial should use the intended bottles and agreed challenge material, with a defined way to assess the result. Compare the complete air or liquid process, including bottle handling, utilities and any drying requirement.
Compare dry bottle-rinsing arrangements See how bottle orientation, nozzle access and debris collection change the choice.
A rinsing brief concerns the empty bottle before product enters it. Use these checks to compare the cleaning operation and its connection to the filler.
Distinguish loose particles from contamination attached to the surface. Describe how bottles are stored and unpacked and provide representative incoming samples. Agree a way to measure the cleaning result; a bottle that looks clean is not proof of every hygiene requirement.
Provide neck openings, shoulders, height and internal features for each format. Review the nozzle position and the proposed route for displaced material. The smallest opening and most awkward shoulder can matter more than nominal bottle capacity.
Discuss bottle orientation, air delivery and collection or extraction as one arrangement. Check whether material removed from one bottle could reach another bottle or the filling area. Include access to inspect and clean the collection path.
Ask the supplier to state flow, pressure and air-quality requirements for the proposed equipment. Have the site verify the delivered air at the point of use. A compressor rating alone does not describe the conditions at the rinsing nozzle.
Show the incoming presentation, conveyor height and clean-bottle route. Consider light empty containers, unstable bases and the distance after cleaning. Agree the response to missing bottles, blocked discharge and a downstream stop before setting the nominal rate.
List guides, holders or nozzles that need adjustment and how the correct setting is identified. Include access, cleaning and restart checks. Count acceptable bottles delivered through a full operating sequence, including routine loading and format changes.
Choose the air-rinsing arrangement around the incoming contamination, bottle geometry, debris collection and transfer to filling.
Use incoming bottles from normal supply as well as agreed challenge samples. Record the bottle format, starting condition, setup, air conditions, duration and inspection method. Compare before-and-after findings and investigate any failed or damaged bottles. Repeat the checks after a format change and restart; agree what happens if air or extraction is unavailable.
Use the selection guide to compare the scope, then send the specification checklist with your application enquiry.
Your final solution for bottle air-rinsing equipment must reflect the law, current standards and site-specific risks that apply to your installation.
